Automatic Smt Lines(80,000 Cph) & Tht Assembly Lines

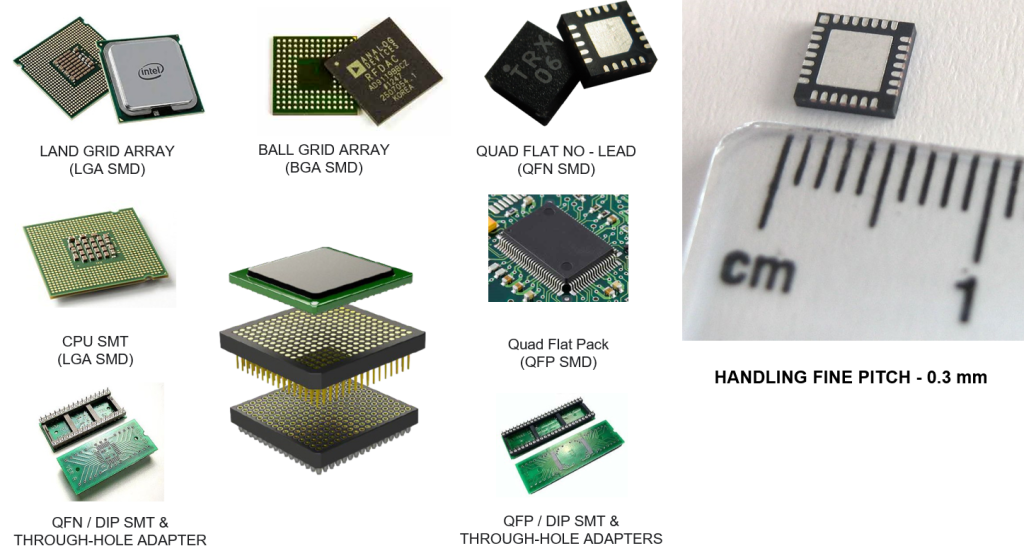

EQUIPPED TO HANDLE SMD & PTH BOARDS, BGA, QFP,QFN, 0402 / 0201 / 01005 CHIPS.
- Total 13,000 Sq. Ft. Manufacturing Facility.
- ESD Floors with fully air conditioned 2 Lines.
- Dedicated NPD team for quick turn-around.
- Complete EMS build capability & repair facility.
- Space Built-up for additional SMT & THT lines.
- Strong delivery network across the country.
- In-Line SMT Machines for PCBA.
- Fully Automatic AOI Machine (In-Line)
SMT ASSEMBLYLINE EQUIPMENTS & MACHINES
HOT WAVE OVEN
HUMIDITY CHAMBER
JOINT CONVEYOR INSPECTION
ESD SAFE PCB MAGAZINE RACK
SMD FEEDER TROLLEY

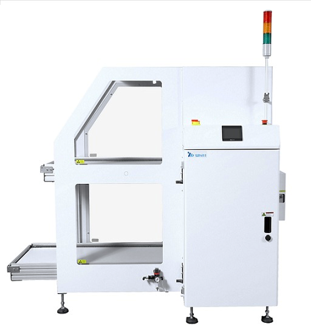

Automatic PCB Loader Machine
FL-300 SLLE LOADER
- Integrated Vacuum Pick-up & Magazine Systems.
- Automatic Conveyor Feeding of PCB’s.
- Conveyor Pitch & Pusher Adjustable.

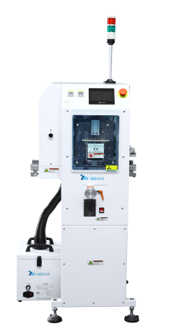

Automatic PCB Cleaner Machine
PCB ROLL CLEANING
- Precise 5D Inspection 18MP Angled cameras.
- Digital12 Projection moiré 3D inspection technology.
- Reflective, OCR & Crack Defects-8Phase coaxial color light.

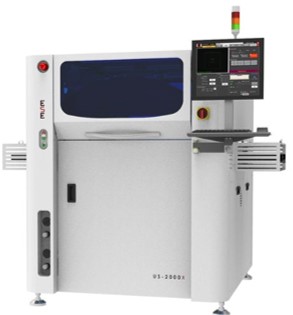

Automatic PCB Screen Printer
US-2000XQ PRINTER
- Automatic Calibration & Programming (ESE Software).
- SPI Closed Loop, 2D Inspection, Machine Statics.
- 10µ Accuracy & Wet Printing Repeatability 20µ @ 6sigma.
Solder Paste Inspection (SPI)
GAM70 - LASER VISION MEASUREMENT Z-CHECK
- Automatic / Momentum of paste thickness.
- Automatic calculation (Cp, Cpk, Cpm).
- Non-Contact Measurement System.

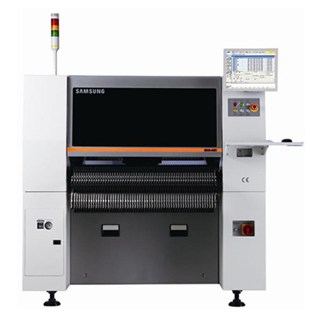

Pick & Place Machine
SM-481 + Capacity: 80,000CPH (2 Machines).
- SM 481Plus 144Feeders (40,000CPH).
- PCBA Size(L x W):450x300mm.
- Placement Accuracy : 40µ/Chip & 25µ/QFP
PCBA Reflow Oven
- JT – 8 Zone Reflow Oven with N2 Ready.
- EPS RF500 – 5 Zone Reflow Oven.
- Measurement Report & Statistical Analysis.

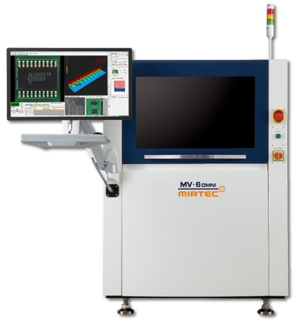

Automatic Optical Inspection
S/W- Automatic Programming
- Digital12 Projection moiré 3D inspection technology.(18MP)
- Reflective, OCR & Crack Defects-8Phase coaxial color light
- Fine Pitch- 0.5 mm QFPs, BGAs, Connectors, LGAs, QFNs

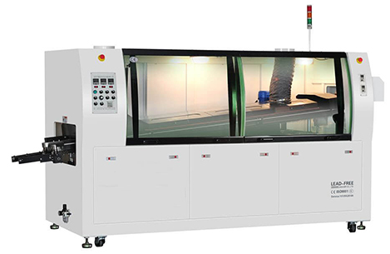

Wave Soldering Machine
PCB 300x400mm Temp.: 300C
- ROHS Wave Soldering Machine.
- NON-ROHS Wave Soldering Machine.
- SMT & THT Wave Soldering.
THT PCBA Production Line
- Dedicated THT Components Stuffing Line
- THT PCBA Assembly line with Lead (Pb) Free.
- Hand Soldering-Lead (Pb) Free

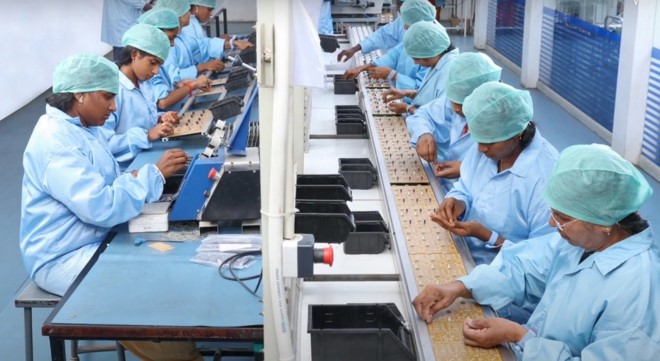

THT STUFFING LINE

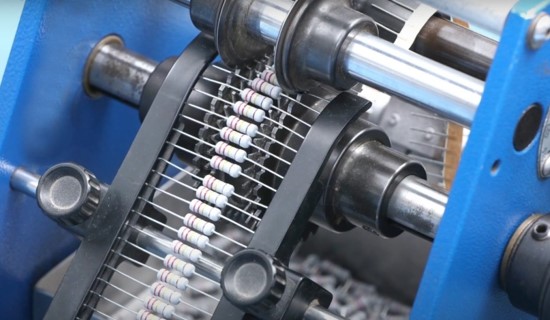

AUTOMATIC PRE-FORMING & LEAD CUTTING

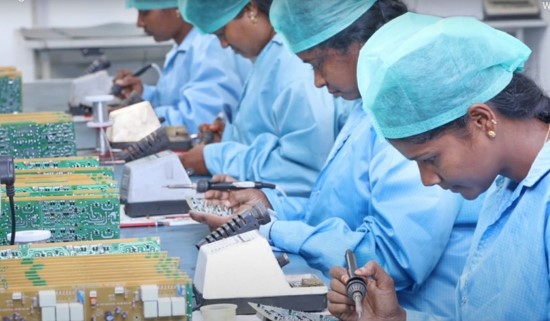

HAND SOLDERING LINE

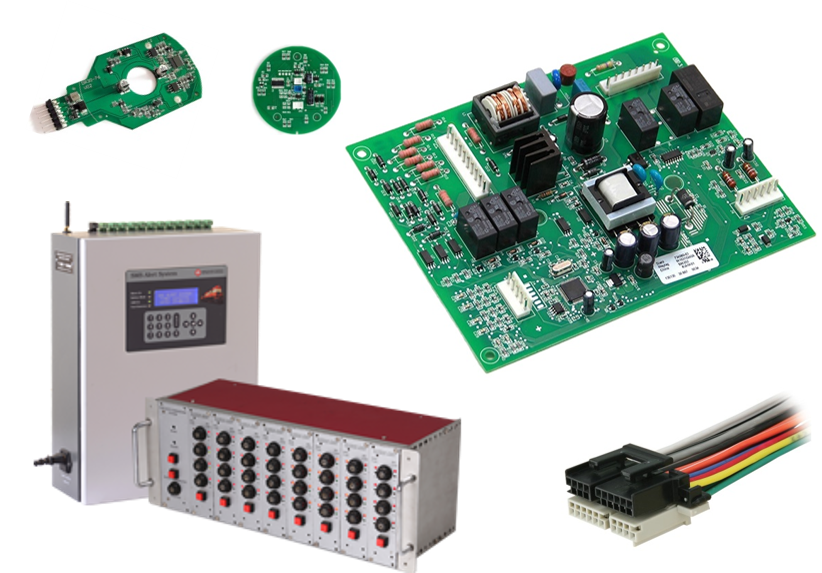

Product Manufacturing Capabilities

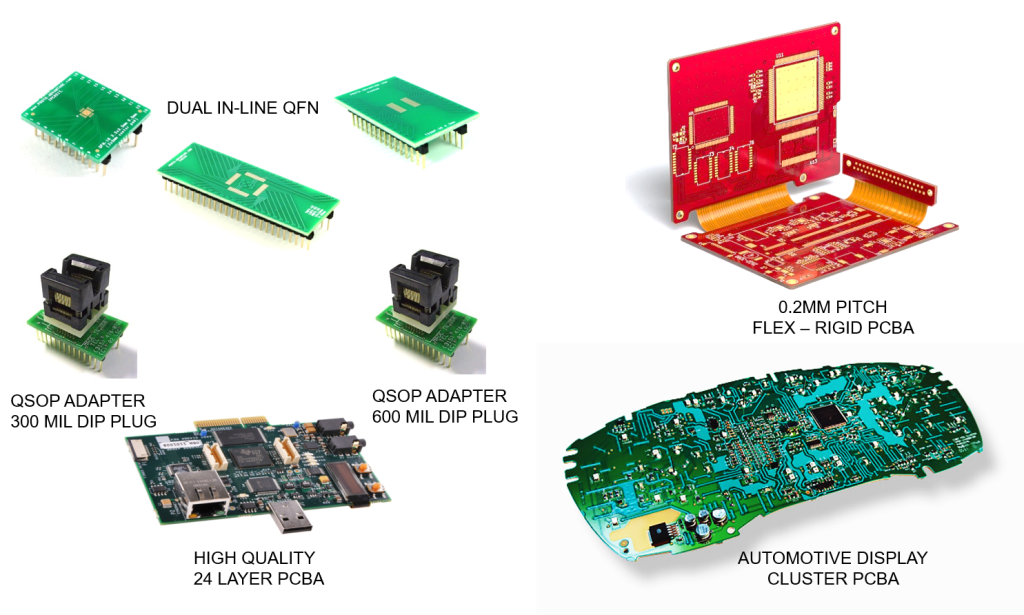

PCB- A Prototyping Solutions
Turnkey service from Design & Development, PCB Fabrication, Component Sourcing, Assembly and Test Validation & etc.
EMS / CMS SOLUTIONS
- SMT, THT & Mixed Assembly Services,
- ROHS Reflow & Wave Soldering Services,
- Automated X-Ray & AOI Inspection Tests,
- Turnkey Box Assembly Building
Cable & Wire Harness
Cable & Wire Harness with PCB-Assemblies for Industrial, Automotive, Engineering Industry OEM Clients.
SMT Soldering Capabilities
SMT Soldering Capabilities

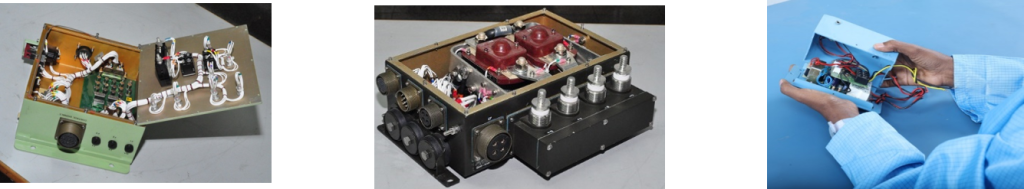

Dedicated Lines For Box Build Assembly Productions (Customer Products)

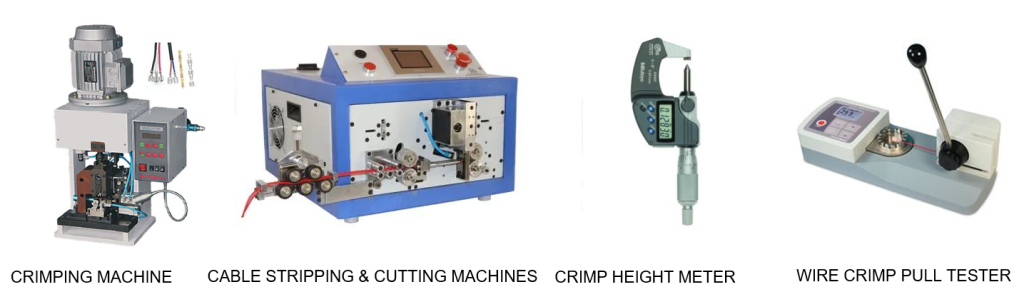

Cable & Wire Harness

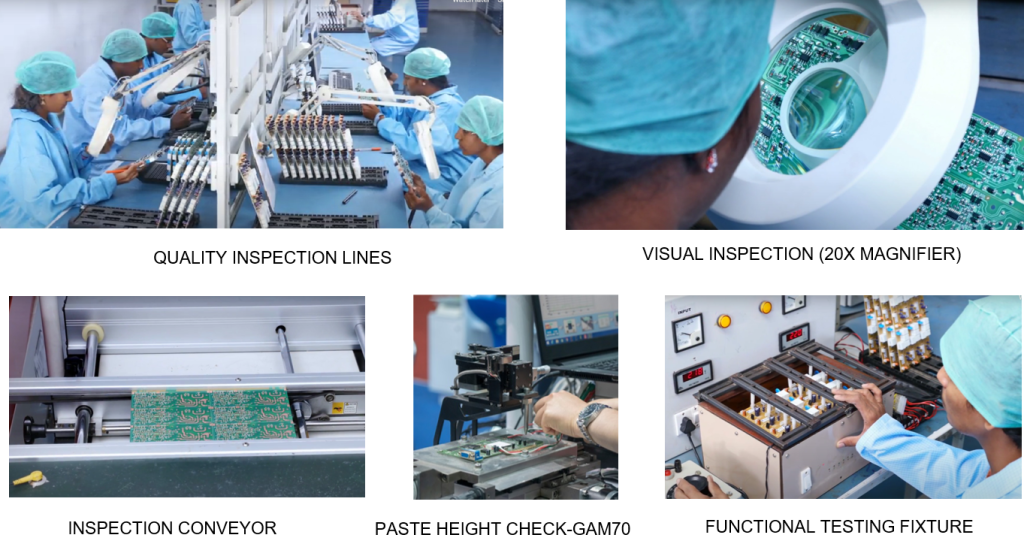

In-House Quality Testing
Client Industry Segments
We Have Presitigious Clients Serving…
